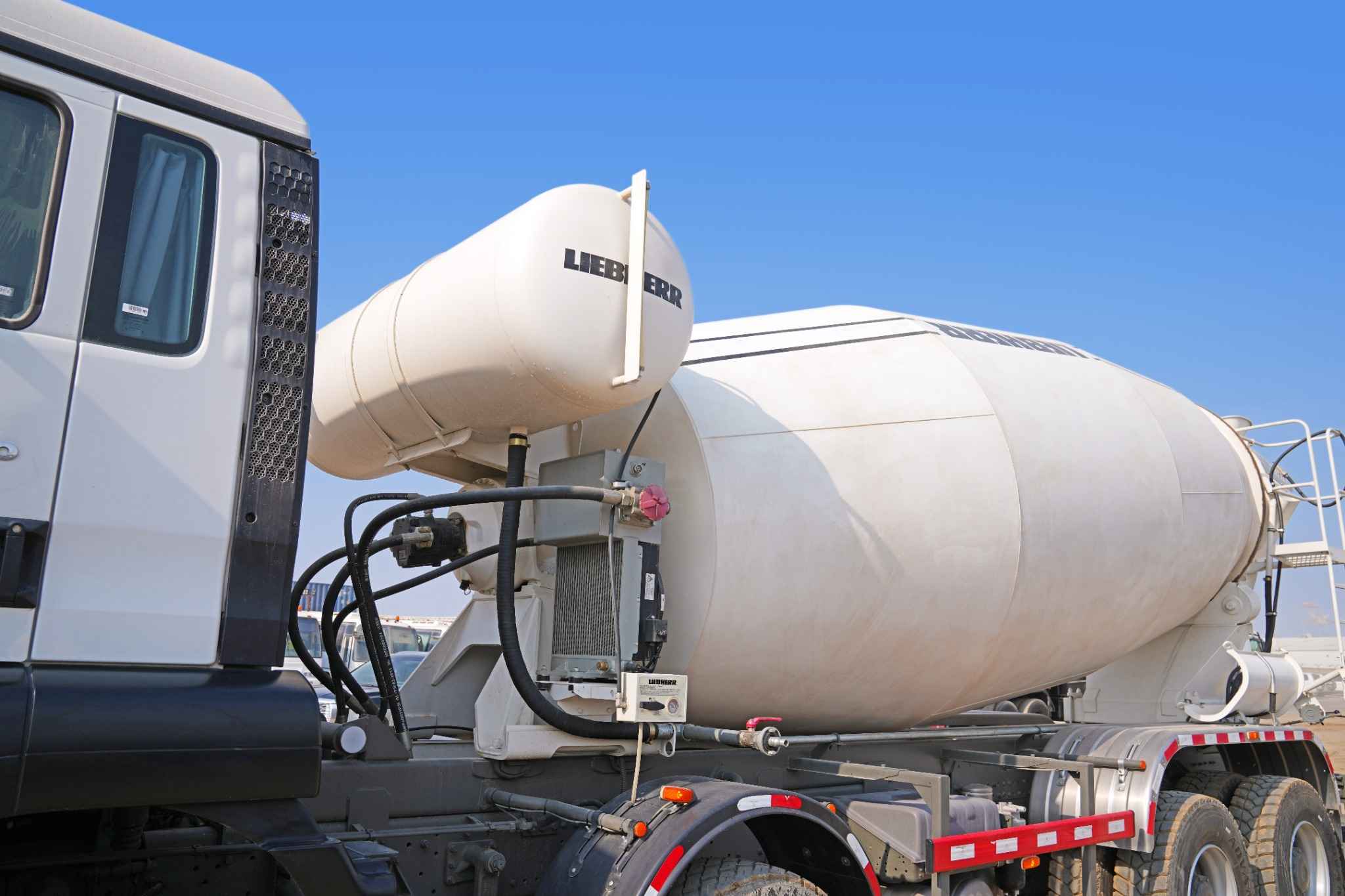

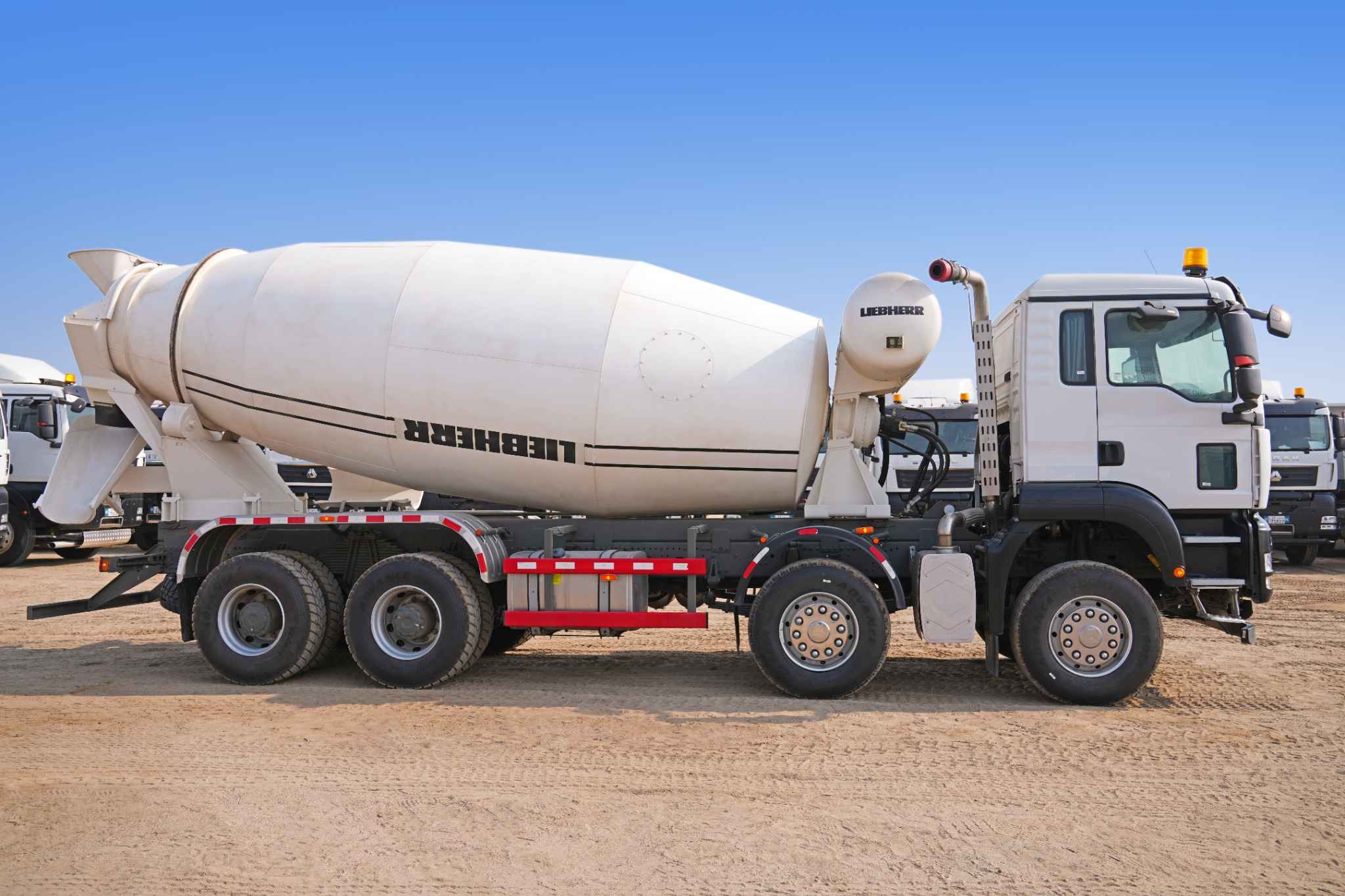

Large 20.7 m³ mixer tank capacity for high-volume concrete transport.
QSTE420TM high-strength steel barrel for durability and long service life.
Efficient mixing performance with adjustable drum speed (0–14 rpm).
Fast loading speed of 6 m³/min and steady discharge speed of 1.7 m³/min.

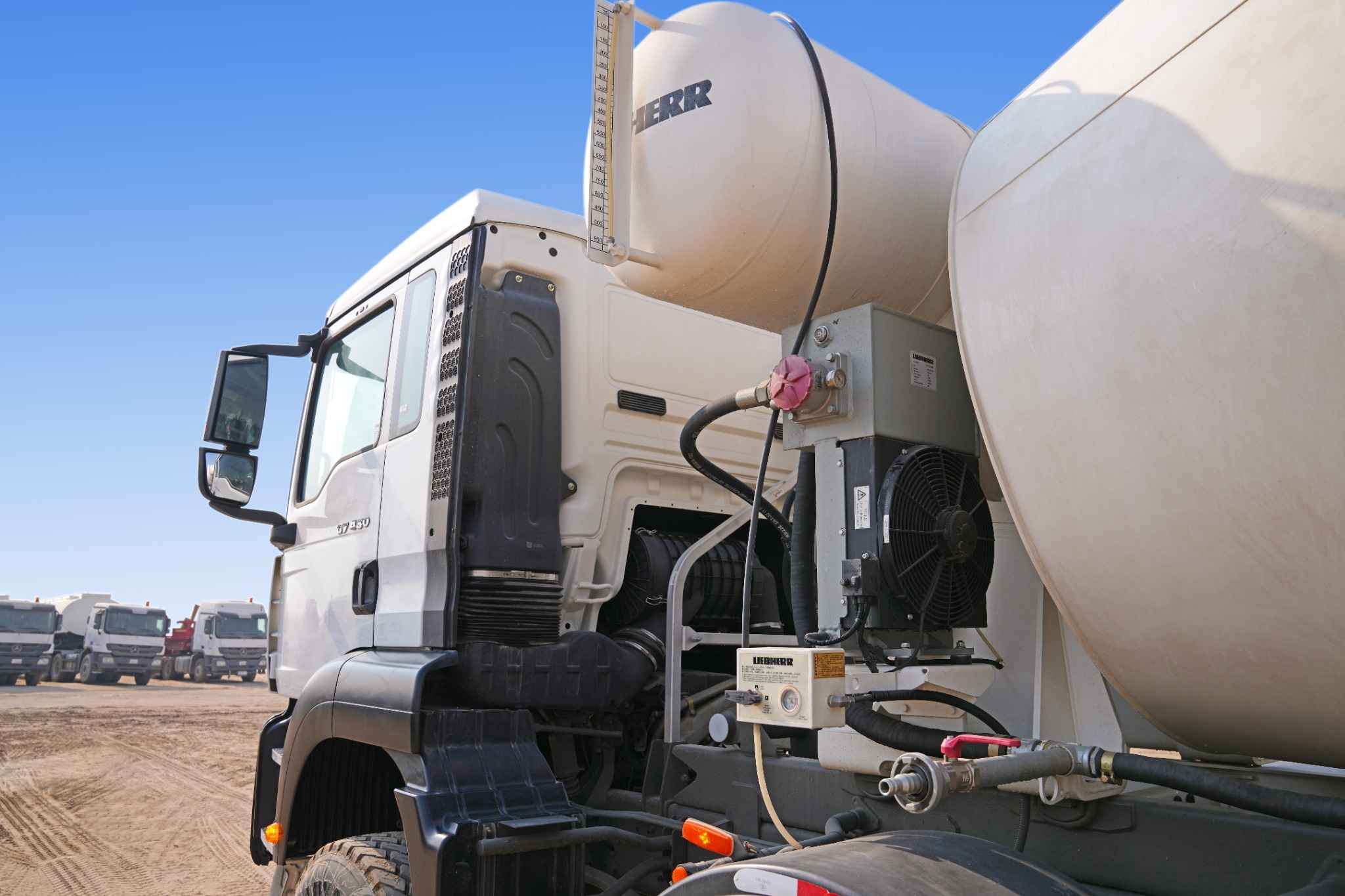

1000 L integrated water tank for on-site operations.
High-performance hydraulic system with PMP/PMH pumps and motors.
Robust sub-frame made from QSTE500TM and reinforced with 16Mn steel.
Equipped with oil cooler (30 L) ensuring reliable continuous operation.

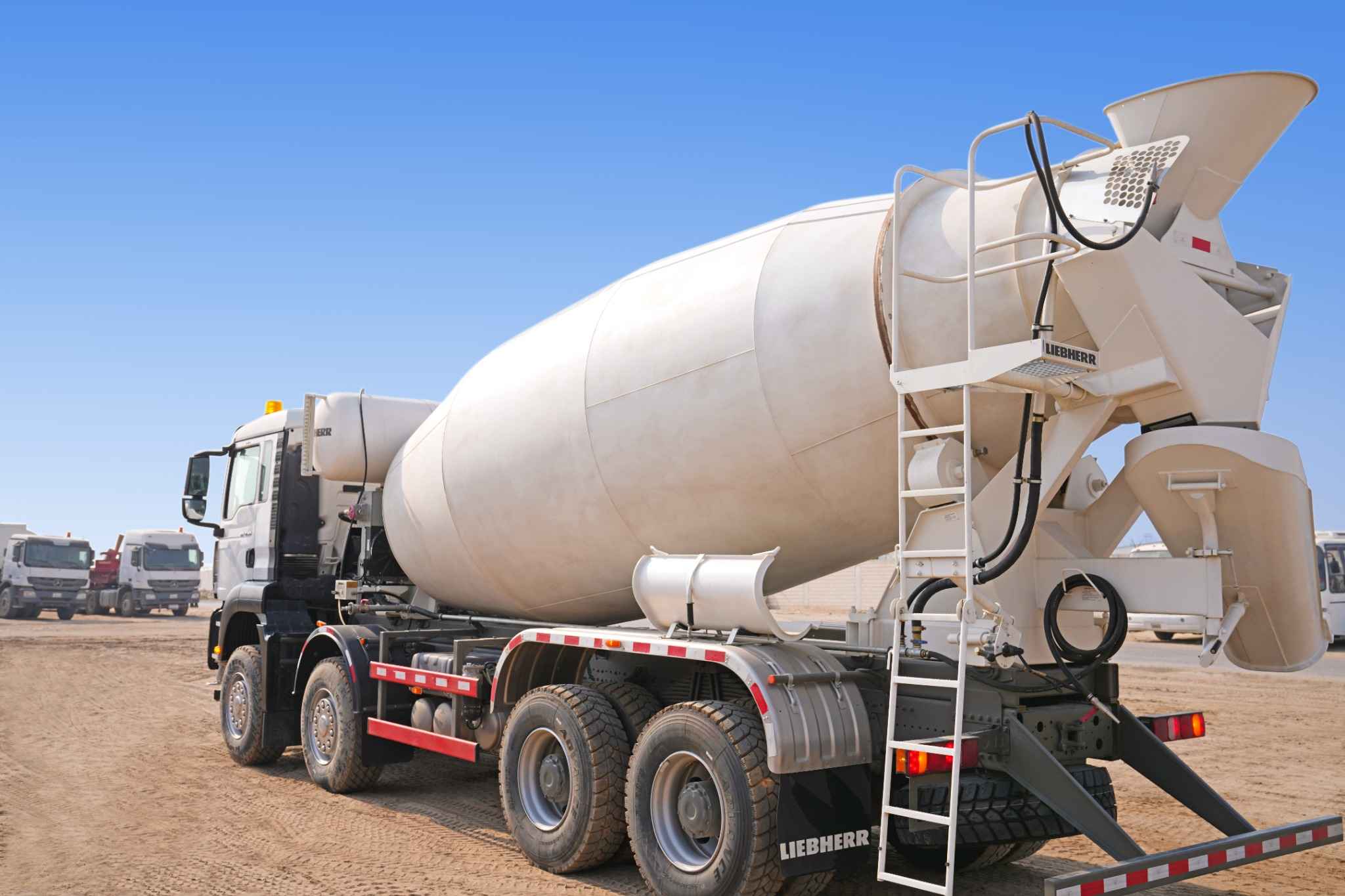

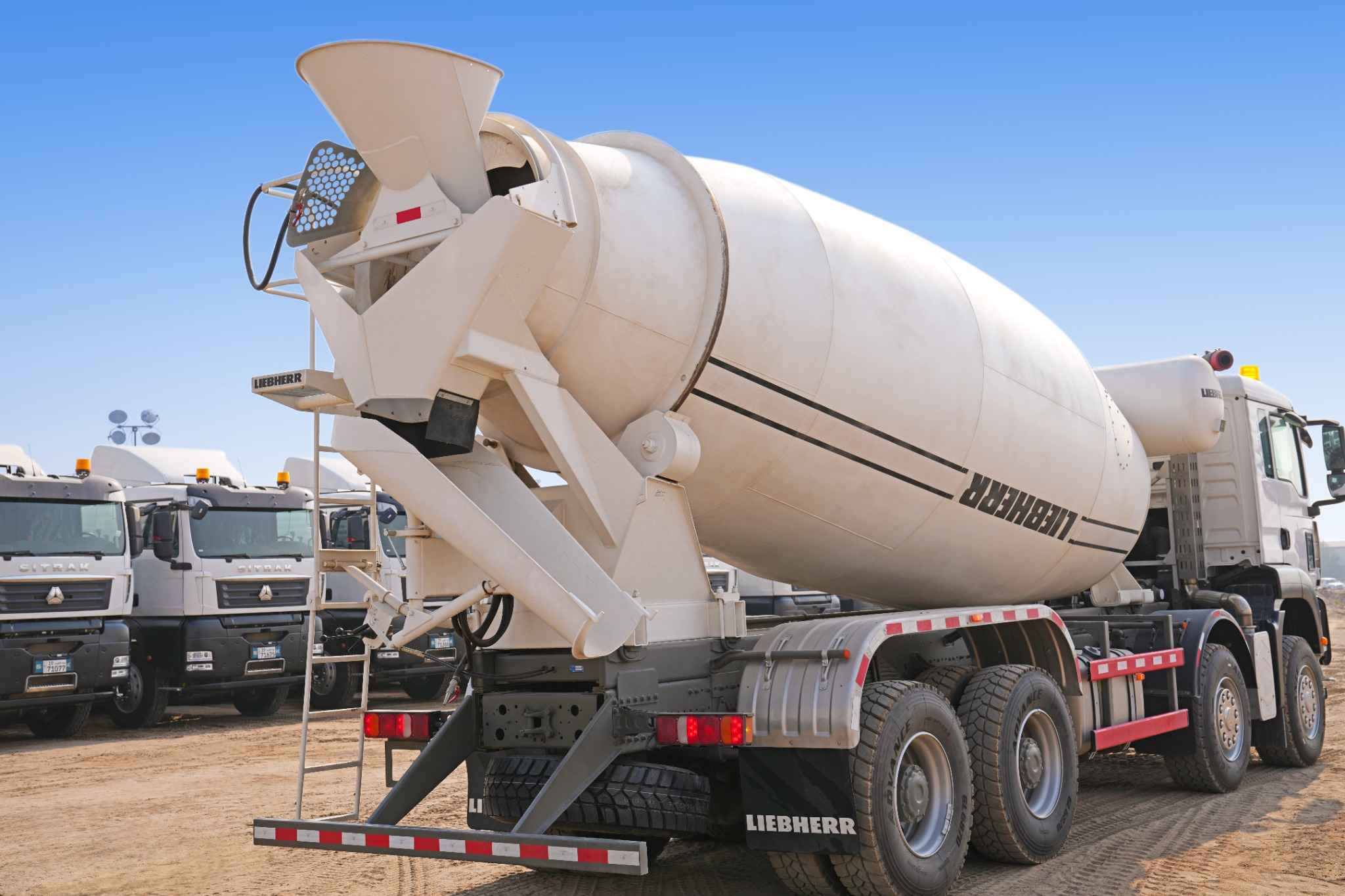

Includes extension chute and modular feed hopper for versatile placement.
| Specification | Details |
|---|---|
| Mixer Tank Volume | 20.7 m³ |
| Gross Weight | 5100 kg |
| Barrel Wall Thickness | 8 / 4 / 4.5 / 4 / 3.5 mm |
| Barrel Wall Material | QSTE420TM |
| Drum Diameter | 2300 mm |
| Mixing Blades Thickness | 4 mm |
| Mixing Blades Material | QSTE420TM |
| Loading Speed | 6 m³/min |
| Discharging Speed | 1.7 m³/min |
| Rest Rate | < 1% |
| Mixer Speed | 0 – 14 rpm |
| Tank Angle | 8.5° |
| Water Tank Capacity | 1000 L |
| Speed Reduction Gear | PMP/PMB7.1 |
| Hydraulic Pump | PMP/PMH P90 |
| Hydraulic Motor | PMP/PMH M90 |
| Oil Cooler | 30 L |
| Discharge Chute | QSTE420TM |
| Extension Chute | Q235B |
| Modular Feed Hopper | LICRO 500 |
| Sub Frame (16Mn) | QSTE500TM |
Powered by a 480 HP Euro V engine with 2300 N·m torque for strong performance.
Equipped with a 12-speed AMT transmission for smooth and efficient driving.
Built with durable axles and high-strength frame for heavy-duty operations.
Features an air-suspended cabin with dual sleepers and A/C for driver comfort.
Enhanced with advanced braking and safety systems for reliable long-haul transport.
Brand / Model: Weichai WP10D264E200
Gross Power (kWm): ESP 264 / PRP 240
Cylinders / Type / Aspiration: 6 / In-line / Turbocharged & Aftercooled
Brand / Model: WEICHAI WHA-250-4/0.4 / LEROY-SOMER TAL A46 D
Rated Current: 361A
Coupling / Bearing: Direct / Single
Powered by a 440 HP Euro V engine for reliable performance.
Equipped with a 12-ton XCMG crane for heavy lifting tasks.
Built with advanced safety systems and durable components.
Features a comfortable SITRAK-M cabin with A/C and air suspension seat.
Ideal for construction, logistics, industrial, and infrastructure projects.
